M0224
TODO
Table of contents
Summary
This board is designed to be a replacement to the mRo 23x23mm L1 uBlox GNSS receiver with 18x18 patch antenna, using only L1 bands.
This design represents the smallest logical GNSS solution available, hence the “micro” moniker.
PX4 Support
The M0224 uses an ST Teseo GNSS receiver, a BMM150 magnetometer and a DPS368 barometer. voxl-px4 identifies the board by probing for the BMM150, then starts the GPS driver with the Teseo protocol (voxl-px4-start).
This detection is in voxl-px4 1.18.0-1.0.12 and newer. Earlier builds, including voxl-px4 1.18.0-1.0.9 in VOXL SDK 1.8, start the GPS driver with the u-blox protocol and do not detect the M0224 GPS.
PX4 parameters for the M0224 are in ekf2-universal-M0224.params.

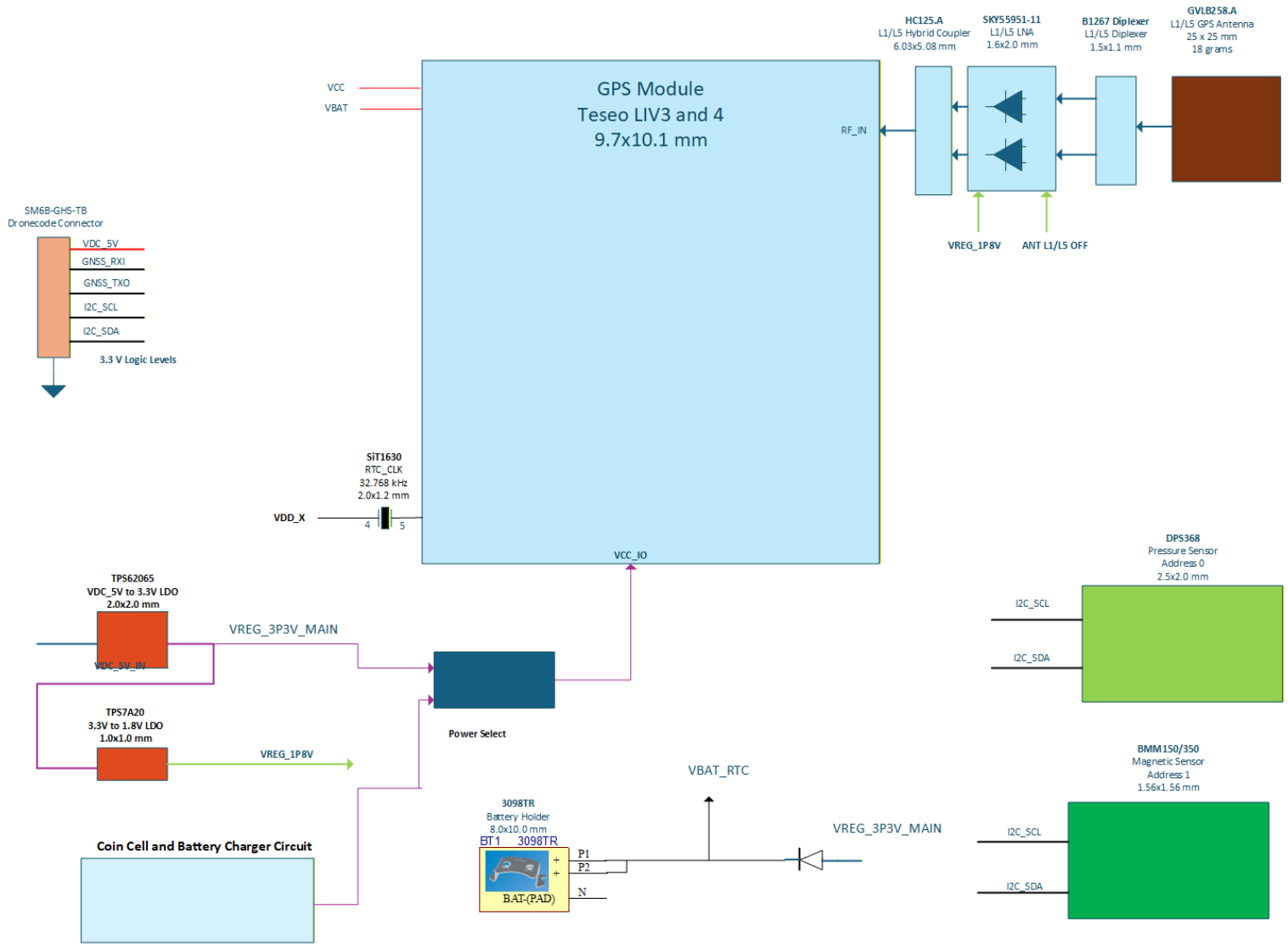

Block Diagram

Mechanical
3D Drawings
Connector Callouts

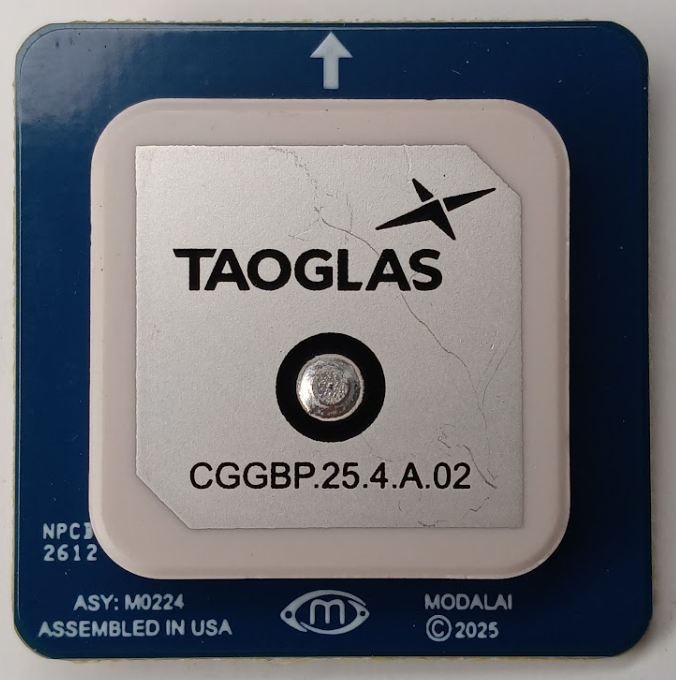

Top

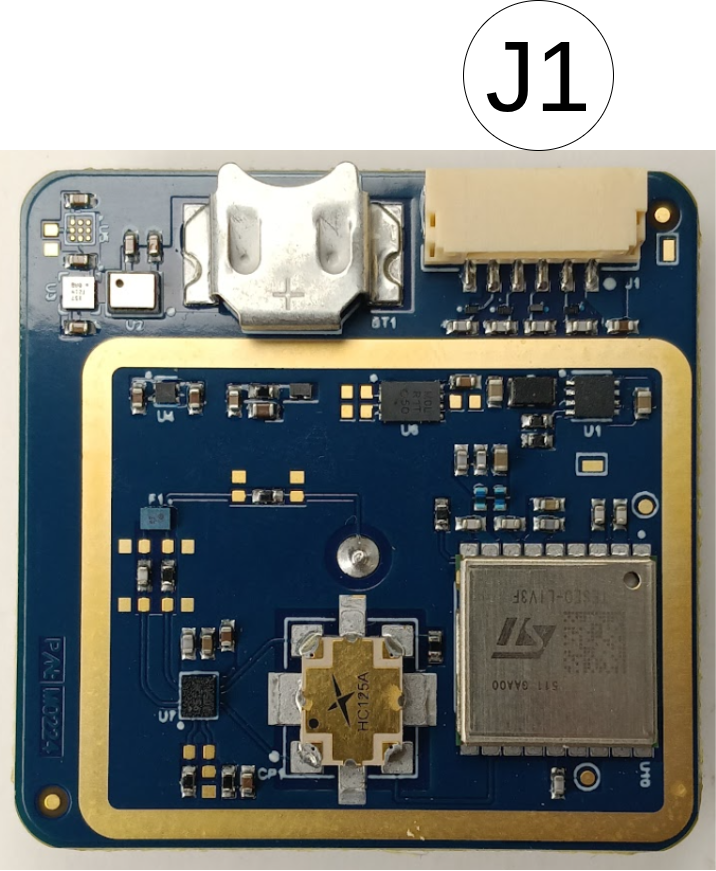

Bottom

J1
| Connector | MPN |
|---|---|
| Board Connector | SM06B-GHS-TB |
| Mating Connector | GHR-06V-S |
| Pin # | Signal Name |
|---|---|
| 1 | 5.0V |
| 2 | GNSS RXI 3P3V |
| 3 | GNSS TXO 3P3V |
| 4 | SENS 12C SCL 3P3V |
| 5 | SENS 12C SCA 3P3V |
| 6 | GND |
