M0233 USB Hub

Table of contents

1. M0233 USB Hub
   1. Summary
   2. Variants
   3. Block Diagram
   4. Mechanical
      1. 3D Drawings
   5. Connector Callouts
      1. Top
      2. J1 - USB HOST
      3. J3 - 5V IN
      4. J4 - USB CLIENT 3
      5. J6 - USB CLIENT 1
      6. Bottom
      7. J8 - USB CLIENT 2
      8. J10 - USB CLIENT 4

Summary

The M0233 USB Hub is designed to break out a USB port on a VOXL to support multiple USB devices such as the sUPI, VTX, cellular radios, or radios such as the Silvus SL5200, DTC BluSDR-6 or Doodle Labs 332-RM-1700-22M3.

Variants

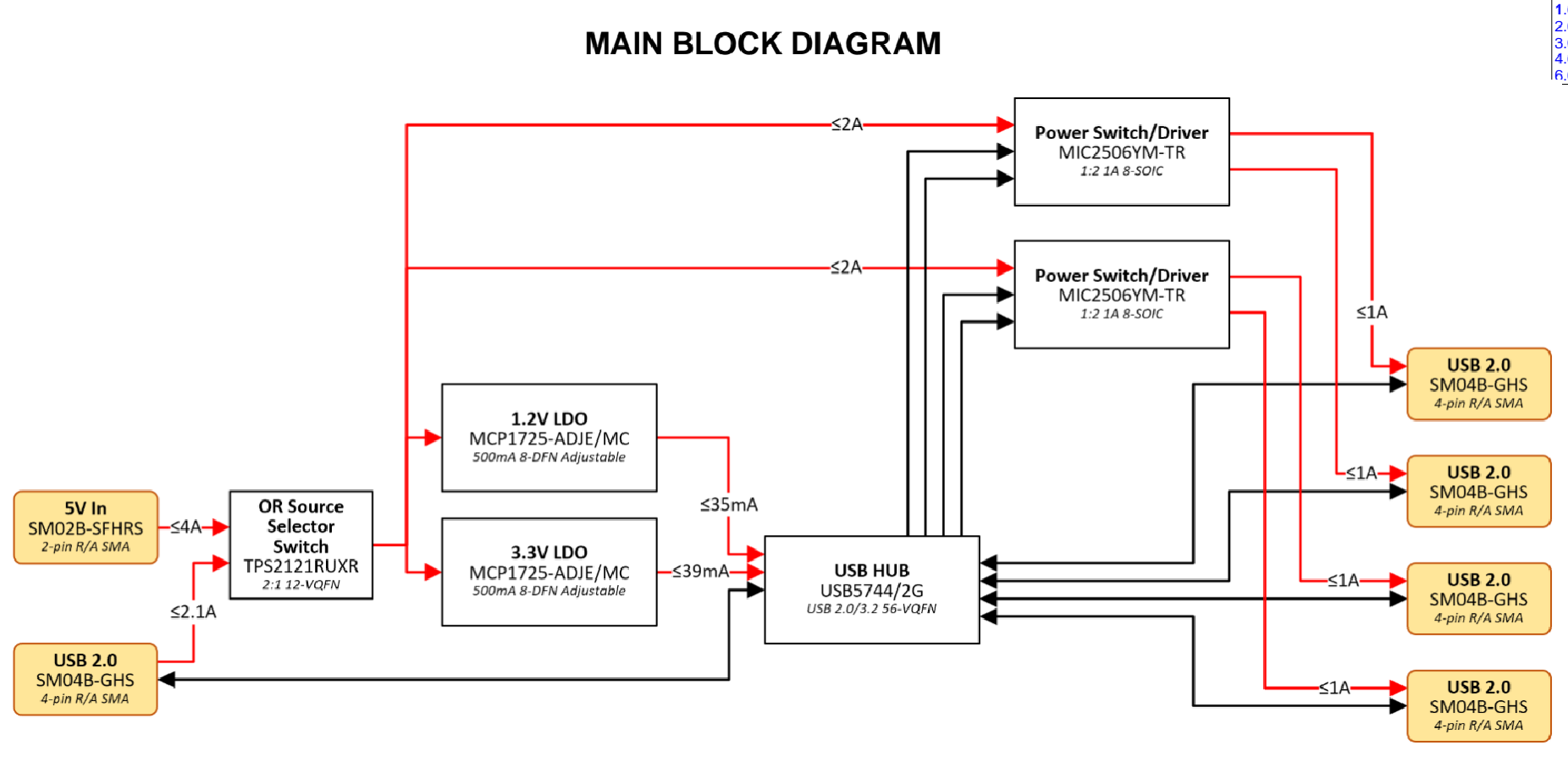

Block Diagram

Mechanical

3D Drawings

3D STEP M0233-1

3D STEP M0233-2

Connector Callouts

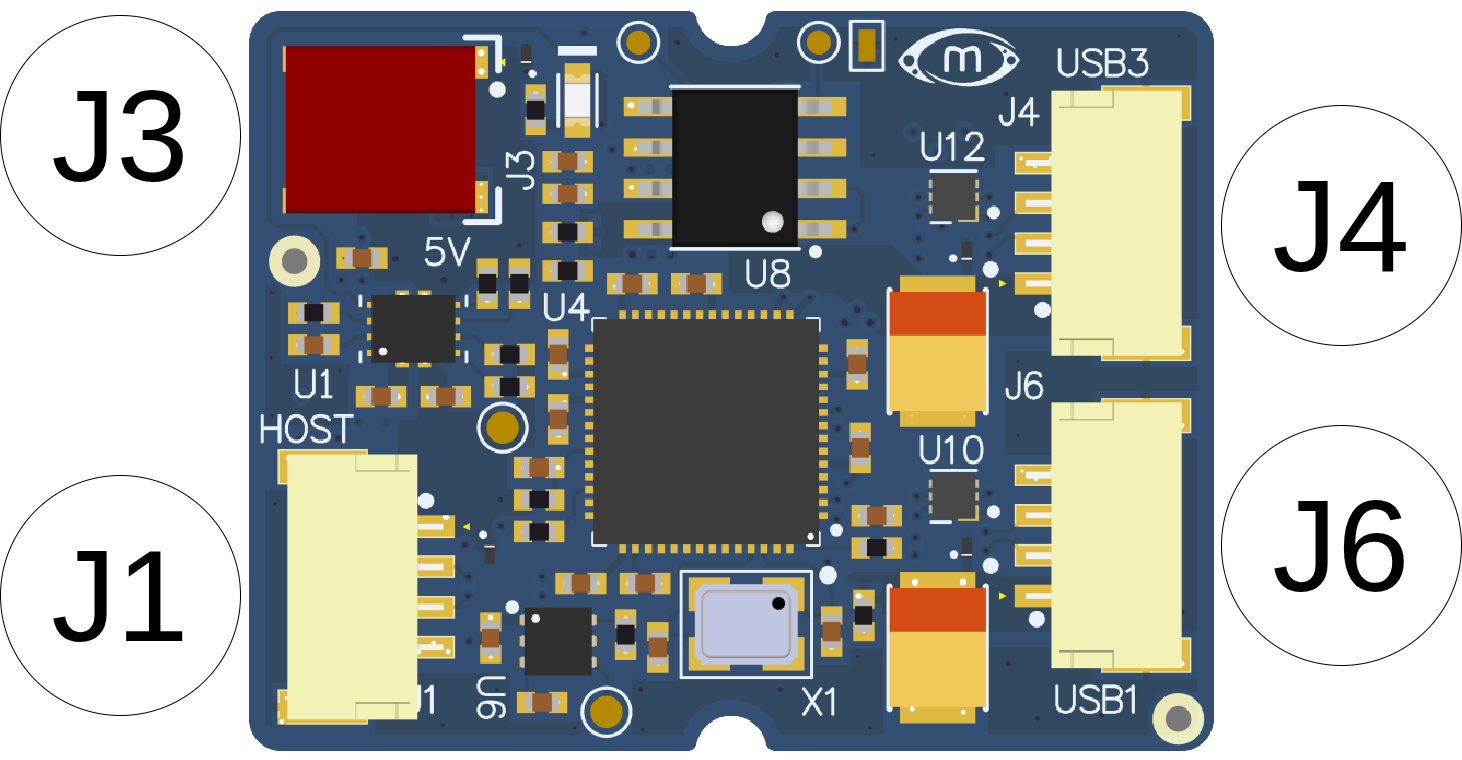

Top

J1 - USB HOST

J3 - 5V IN

J4 - USB CLIENT 3

J6 - USB CLIENT 1

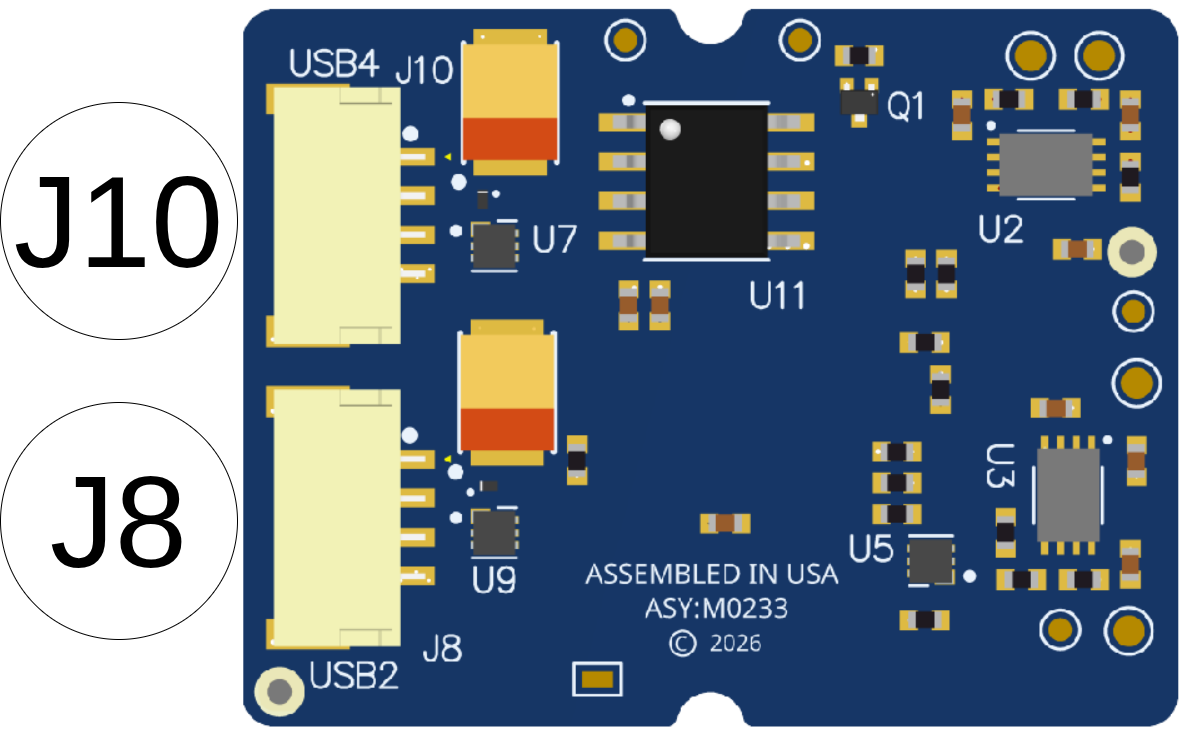

Bottom

Note: The bottom side connectors (J8 and J10) are only present and used on the M0233-1 variant. The M0233-2 has top side USB ports only.

J8 - USB CLIENT 2

J10 - USB CLIENT 4
