VTX Air Unit Datasheet

Table of contents

  1. Overview
    1. Images
    2. High-Level Specs
    3. Supported VRX Ground Units
    4. VOXL SDK Support
  2. Enclosure/Mount
    1. Version 1
  3. Interfaces
  4. Antennas
  5. Power Connectors
  6. Image Sensors
  7. Micro Coax Cables
  8. SKUs
    1. Stand Alone VTX
    2. Drones with VTX
    3. VTX Image Sensors
    4. VTX Antenna
    5. Other

Overview

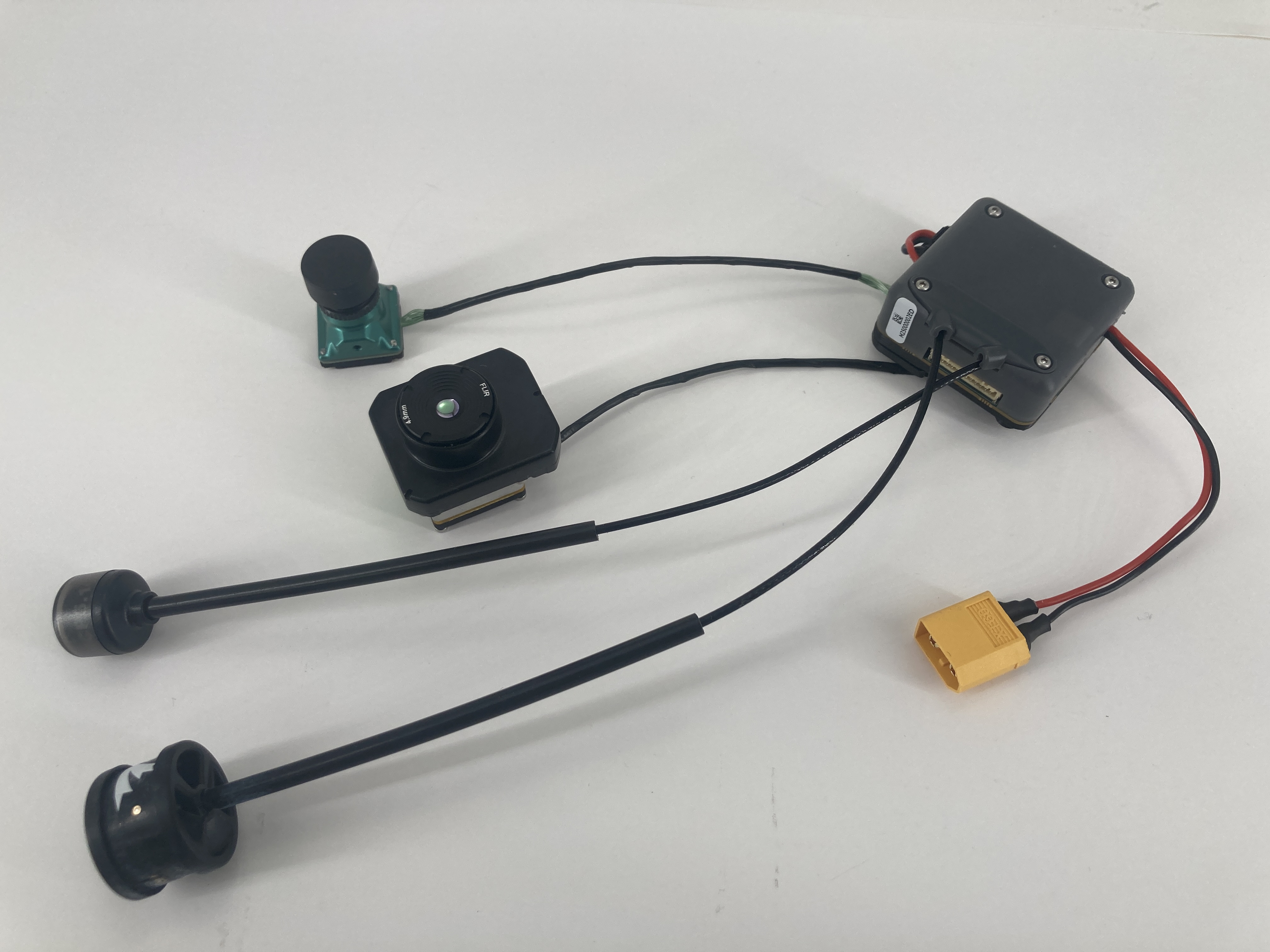

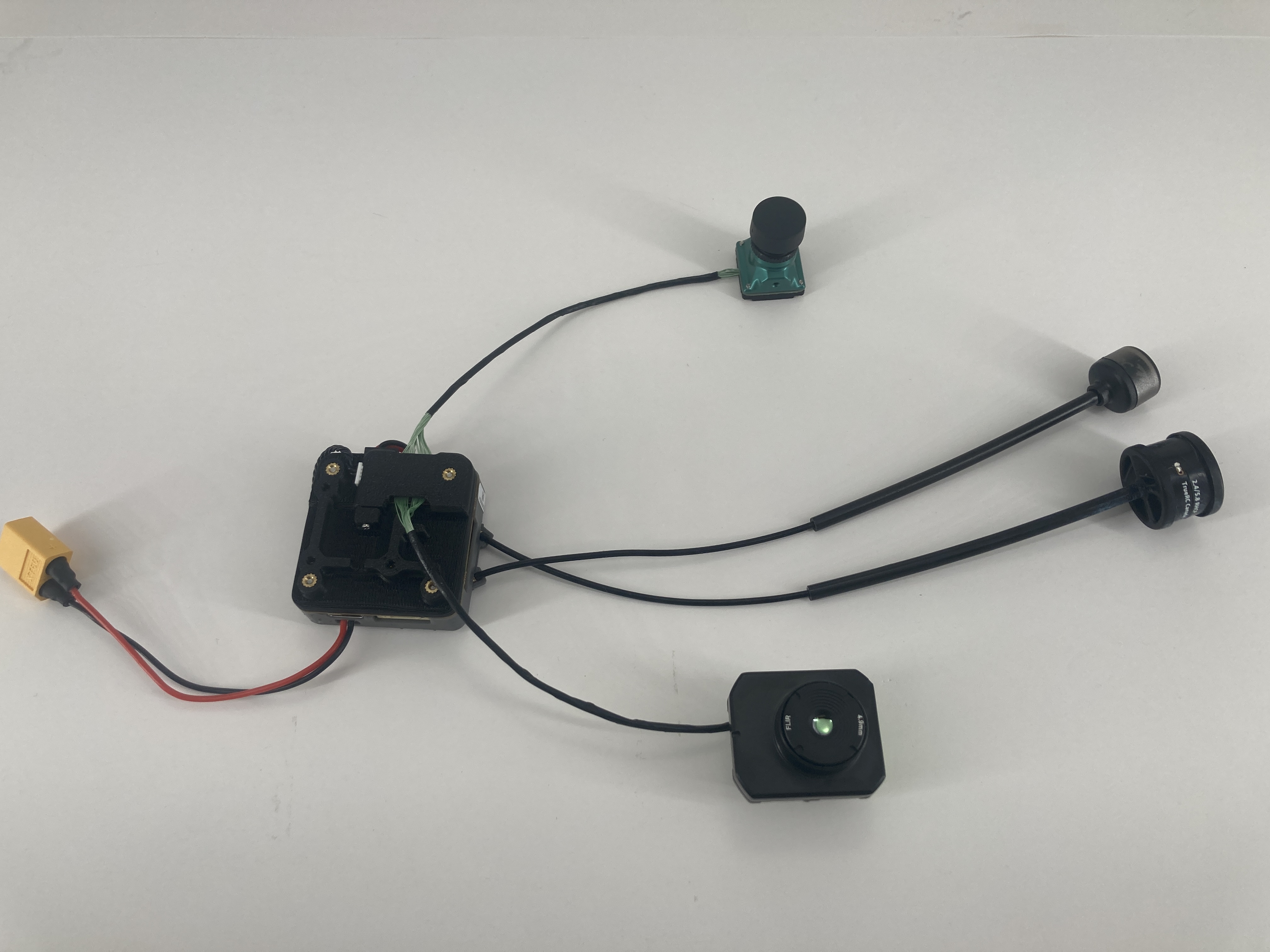

Images


High-Level Specs


Range10km+ 5GHz or 2.4GHz (LOS)
Video Performance1280*720@60fps, 40ms glass-to-glass min, 50ms avg
Frequencies Supported2.412-2.484GHz or 5.180-5.865GHz
Compute.ModalAI M0204-1 - VOXL 2 Mini
USB PortYes (USB2 Peripheral mode).
IP InterfaceYes (USB-to-Ethernet -> RTSP)
Weight86g (C51 camera config, EO + IR) w/o battery
SizeSize (L x W x H): 45mm x 45mm x 25mm
Battery/Power2S-6S (6.4-25.2V), XT60 connector, 6W max
AntennasQTY2 U.FL (MHF1), 5GHz (qty-1) and 2.4GHz (qty-1)
Image Sensor OptionsC50 IMX664, C51 IMX664 and Bonson+ (stream switchable)

Supported VRX Ground Units

VOXL SDK Support

The VTX Air Unit is supported in VOXL SDK 1.6.0+

See VTX Ground Unit Software Guide for more details.

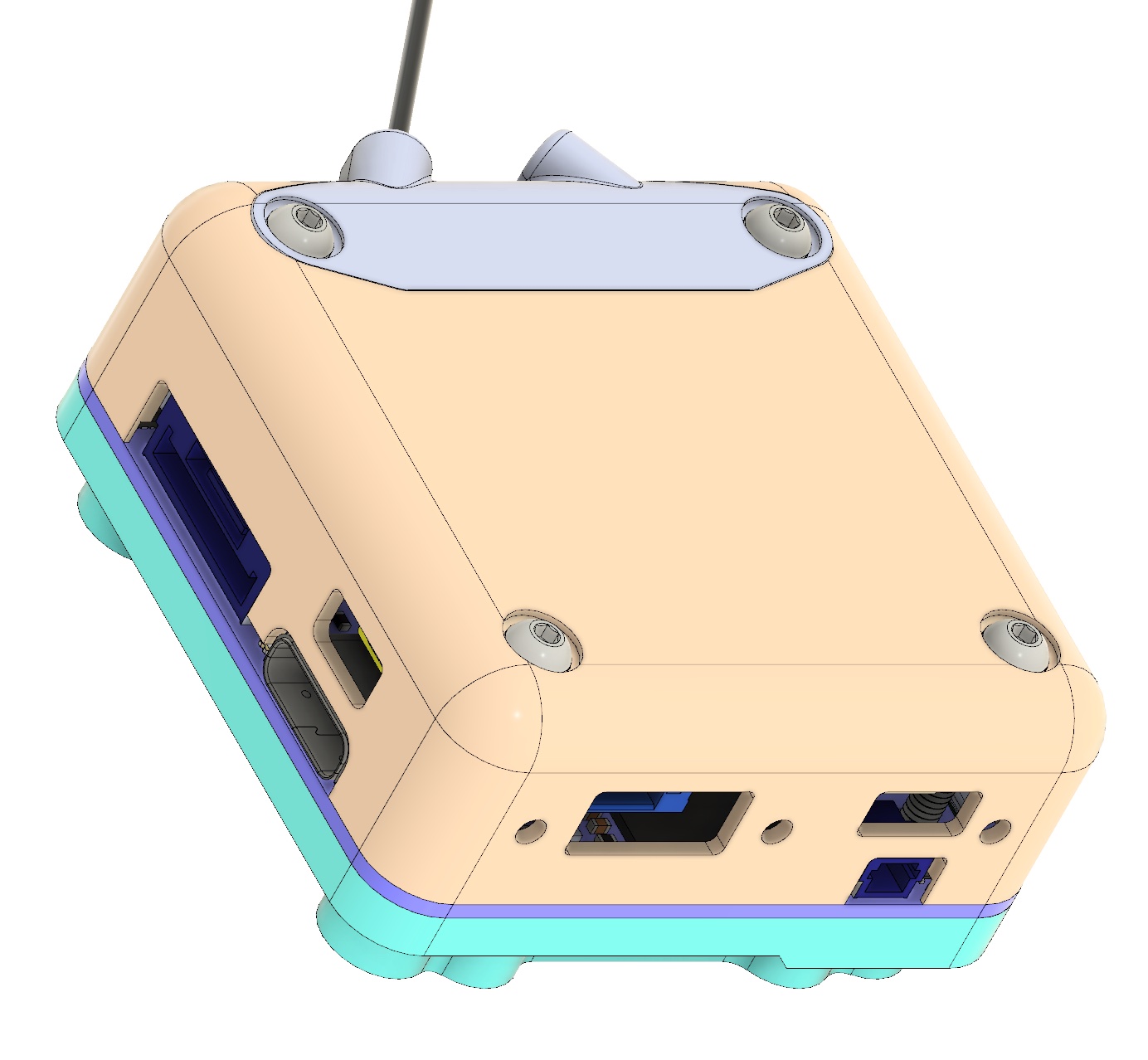

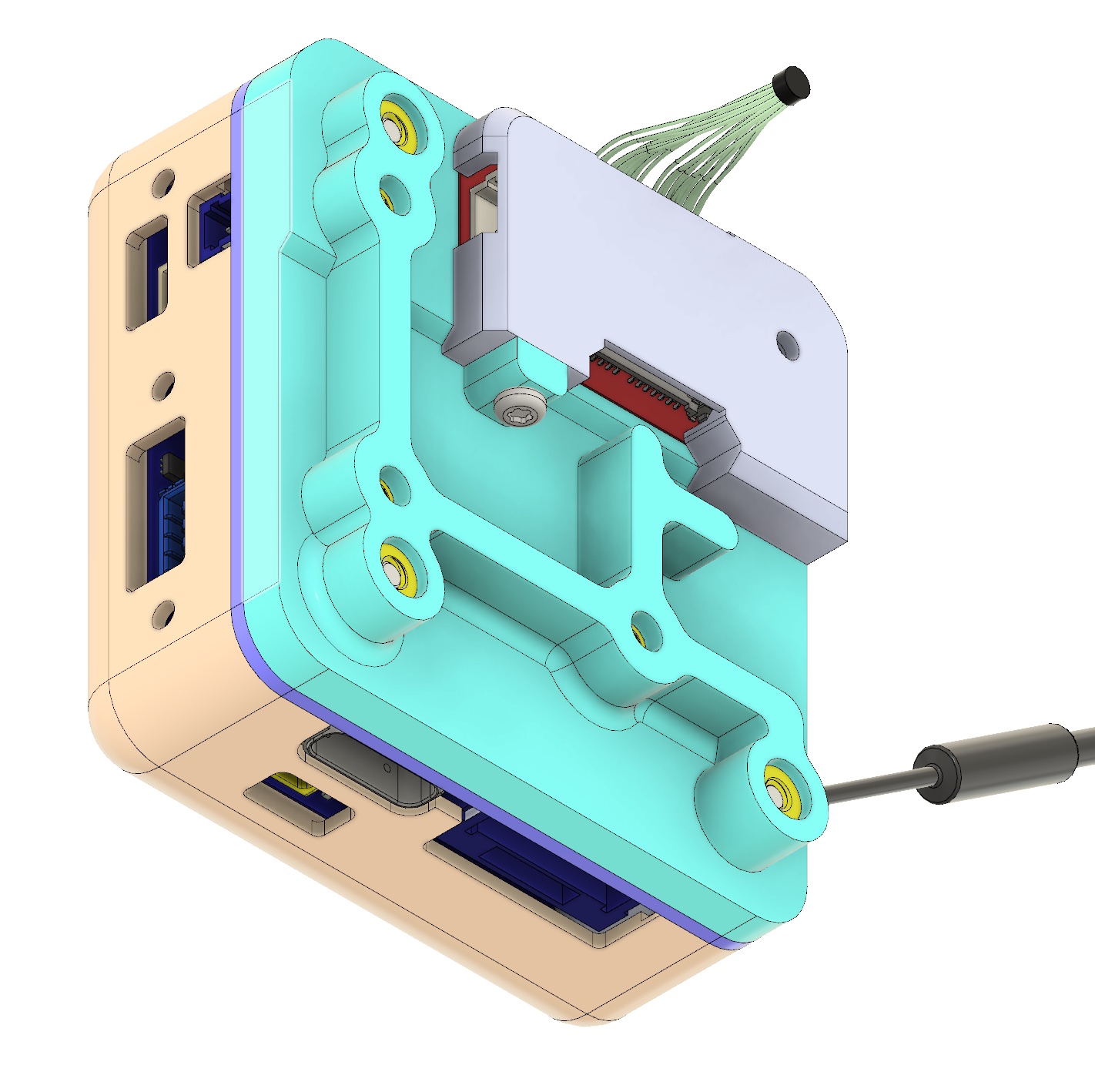

Enclosure/Mount

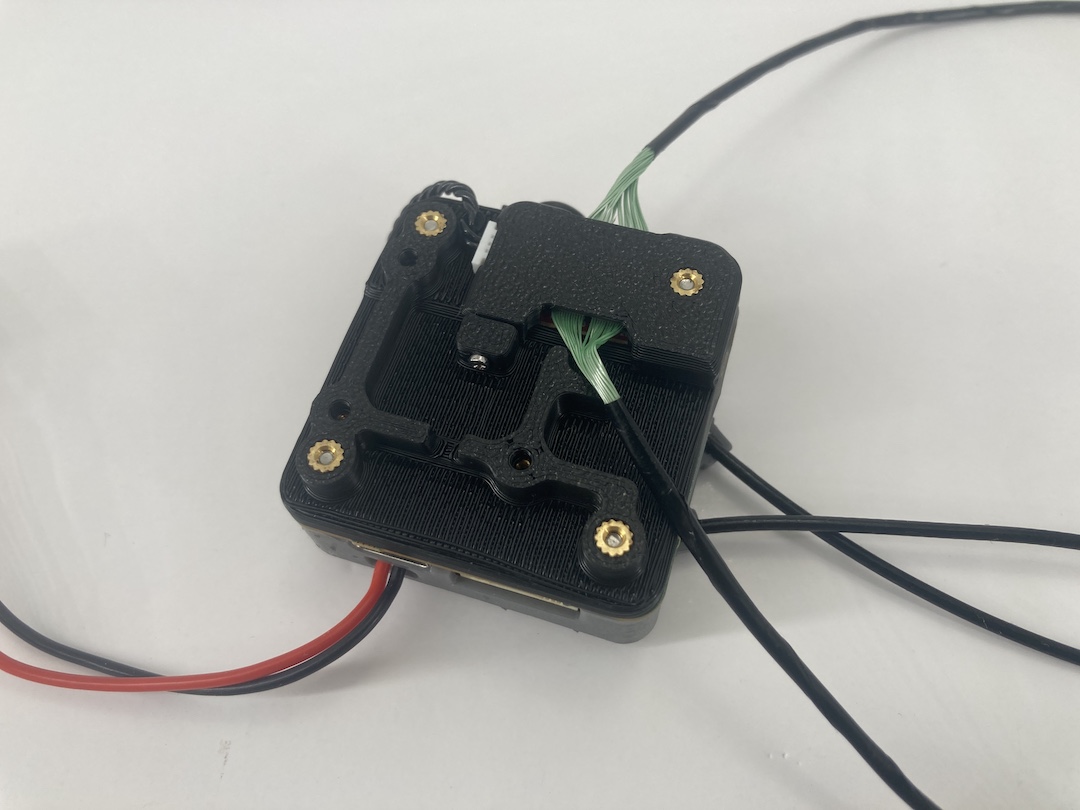

Version 1

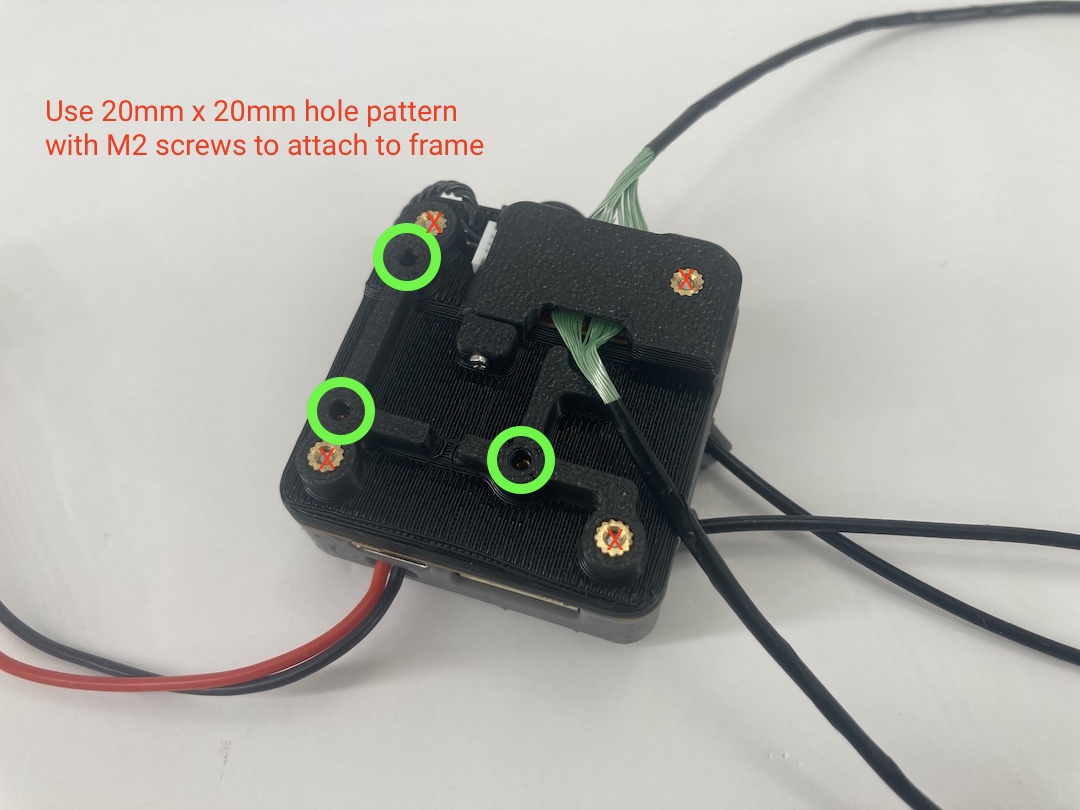

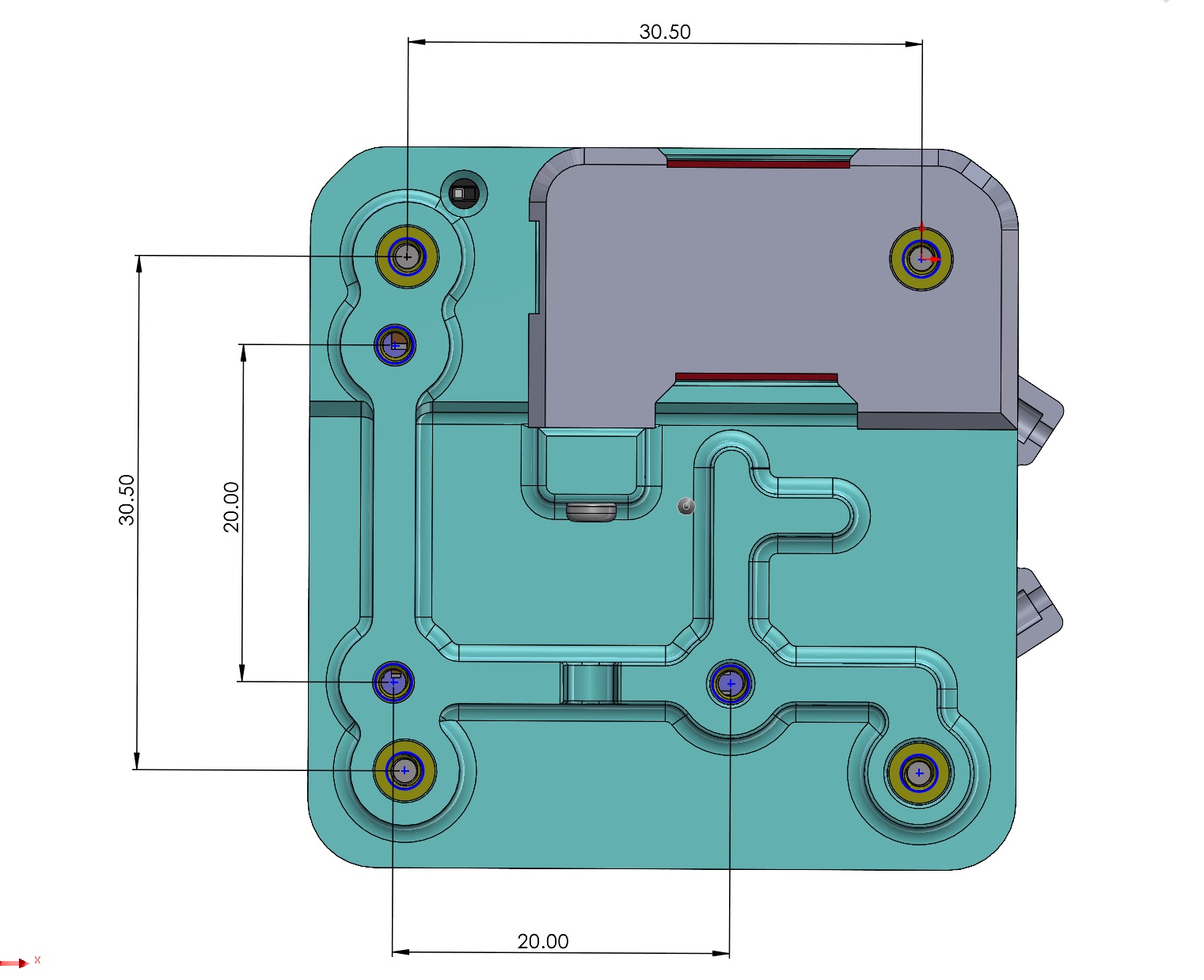

  • Primary Mounting Hole Pattern - 20mm x 20mm - M2 screws - use this to mount to frame

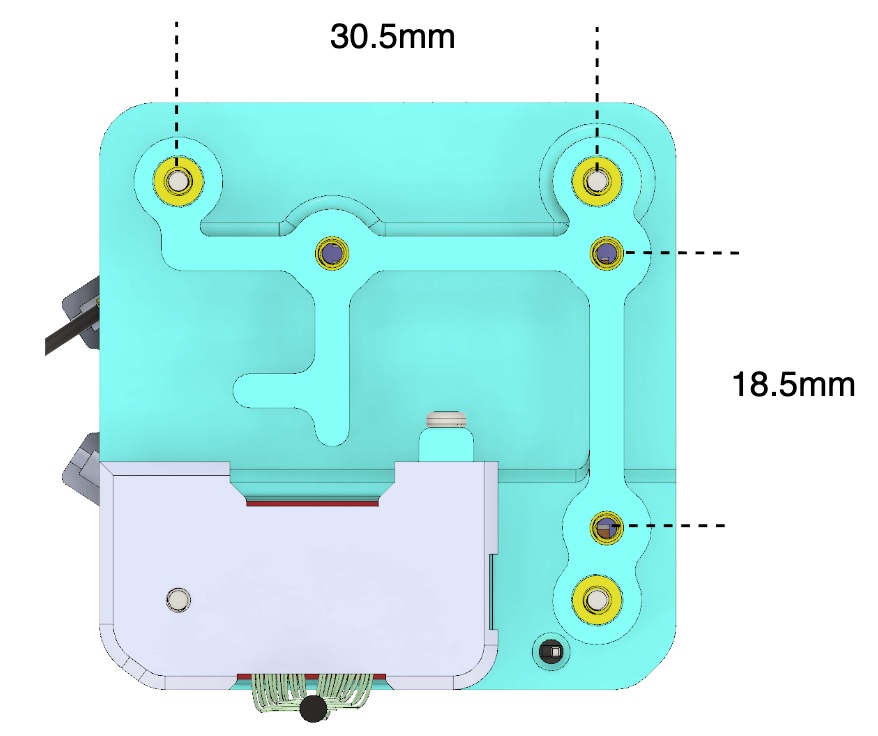

  • Secondary - 30.5mm x 30.5mm - VOXL2 Mini (M0204) mounts to these ‘passthrough’ holes

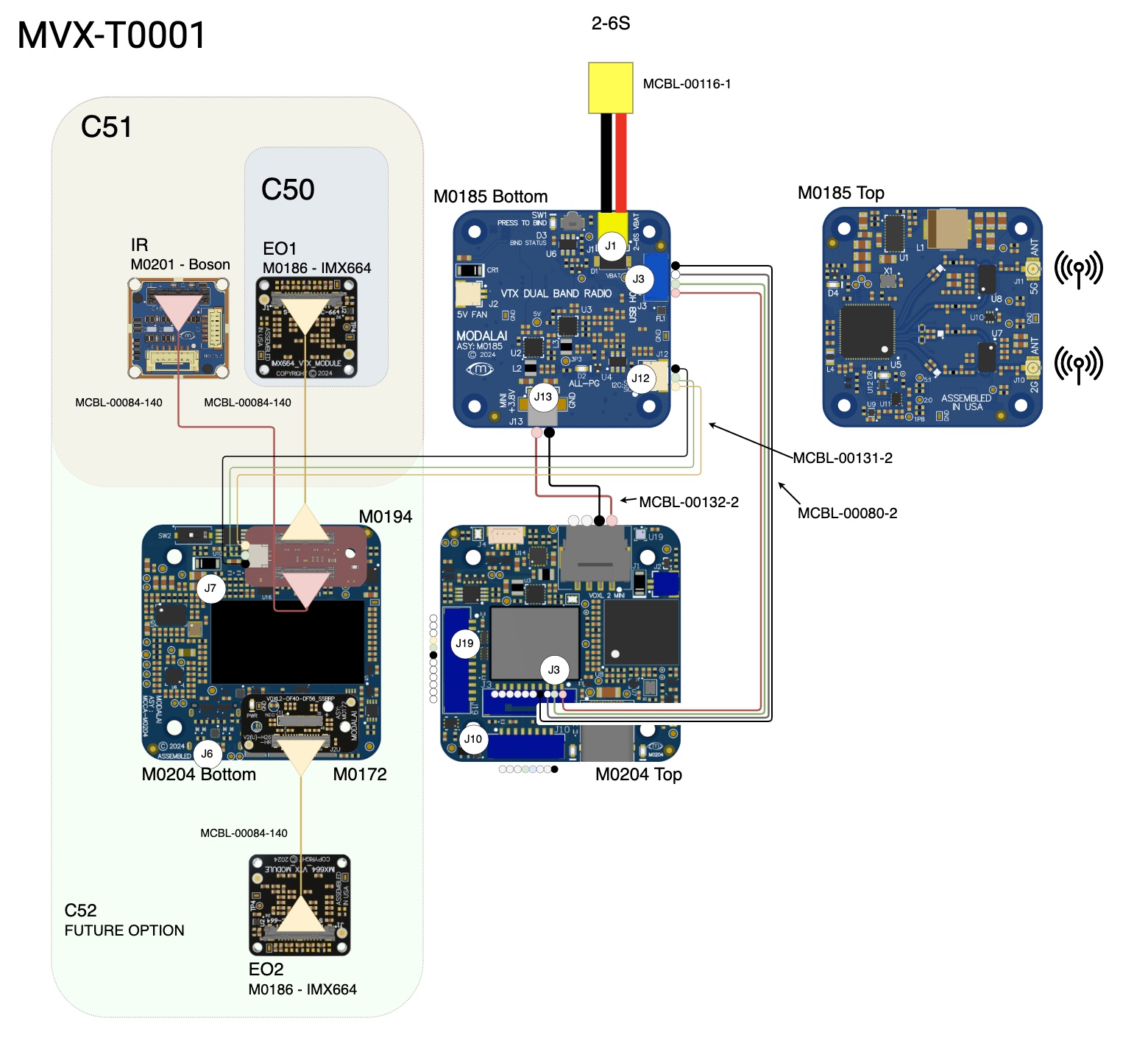

Interfaces

Antennas

  • M10001287 - SINGULARITY 2.4 V2, RHCP, 100mm tube, 190mm RG178 to U.FL
  • M10001288 - CP5.1, RHCP, 100mm tube, 190mm RG178 to U.FL

Power Connectors

  • MCBL-00115-1 - XT30 (included)
  • MCBL-00116-1 - XT60 (standard)

Image Sensors

  • MCCA-M0186 - IMX664 (standard)
  • M10000958-C - Boson+ (option)

Micro Coax Cables

  • MCBL-00084-140 - 140mm micro coax

SKUs

Stand Alone VTX

ModalAI SKUDescription
MVX-T0001-6-V1-C50-M26VTX, Gen1.5, IMX664 (EO)
MVX-T0001-6-V1-C51-M26VTX, Gen1.5, IMX664 (EO), Boson+ (IR)

Drones with VTX

ModalAI SKUDescription
MRB-D0013-6-V2-C33-M26-T8-X8Stinger
MRB-D0013-6-V2-C34-M26-T8-X8Stinger with Boson+ IR

VTX Image Sensors

ModalAI SKUDescription
MSA-T0001-1-03VTX Subassembly, Image Sensor, IMX664 EO
MSA-T0001-1-04VTX Subassembly, Image Sensor, Boson+ IR

VTX Antenna

ModalAI SKUDescription
MVX-TA01VTX Subassembly, Antenna Kit (2.4/5GHz)
 M10001287 - SINGULARITY 2.4 V2, RHCP, 100mm tube, 190mm RG178 to U.FL
 M10001288 - CP5.1, RHCP, 100mm tube, 190mm RG178 to U.FL

Other

ModalAI SKUDescription
MSA-T0001-1-01VTX Subassembly, Compute, Radio, Cables
MSA-T0001-1-02VTX Subassembly, Fasteners, 3D Printed Parts
MSA-T0001-1-52VTX Subassembly, Accessories
