Shikra FPV Datasheet

Table of contents

  1. Overview
    1. Features
    2. High-Level Specs
  2. Critical Components
    1. VOXL SDK Support
    2. Supported VRX
    3. SKUs
  3. Wiring Diagram
    1. MRB-D0017-8-C50-M26-T8

Overview

Features

High-Level Specs

Specicifcation
Weight451g w/ battery
Size
Flight Time18 minutes
Motors
Propellers
FrameLumenier QAV-R 2C Frame Kit - 5”
ESCs
VTX Antennas
Battery6S LiIon
ComputingModalAI M0204-1 - VOXL 2 Mini
Flight ControlBrave F7 BetaFlight
Image SensorQTY 1 ModalAI M0186 IMX664 (Front)
VTXModalAI MVX (M0185-1 VTX)
Receiver Config T8ModalAI M0184 ELRS 915mHz

Critical Components

Critical Electronic Component (CEC)Encryption TypeMakeModelLocation of HQCountry of Manufacture
Flight controller/autopilot RotorRiotBrave F7Puerto RicoUSA
Additional computers/companion computersAES-256 Capable / Developer EnabledVOXL 2 MiniM0204San Diego, CAUSA
Radios ModalAI Gemini ELRS 915MHzM0184-1San Diego, CAUSA
Data transmission devicesChaCha256ModalAI MVXM0185San Diego, CAUSA
Camera(s)N/AModalAIM0186-1San Diego, CAUSA
GimbalsN/AN/A
GCS hardwareChaCha256ModalAI MVXMVX-R0001San Diego, CAUSA
GCS softwareChaCha256ModalAI MVXMVX-R0001San Diego, CAUSA
C2 device/handset ModalAI Zorro BlueMRC-Z0001-1San Diego, CAUSA
Secondary tracking hardware (Remote ID, ADS-B, etc.)N/A
Payload(s)N/A

VOXL SDK Support

Shikra FPV is supported in VOXL SDK 1.4.5+. See Stinger Software Guide for more details.

Supported VRX

See ModalAI VRX Ground Unit

SKUs

Shikra FPV UASDescription
MRB-D0017-8-C50-M26-T8Shikra, M0185 VTX, M0184 ELRS 915MHz

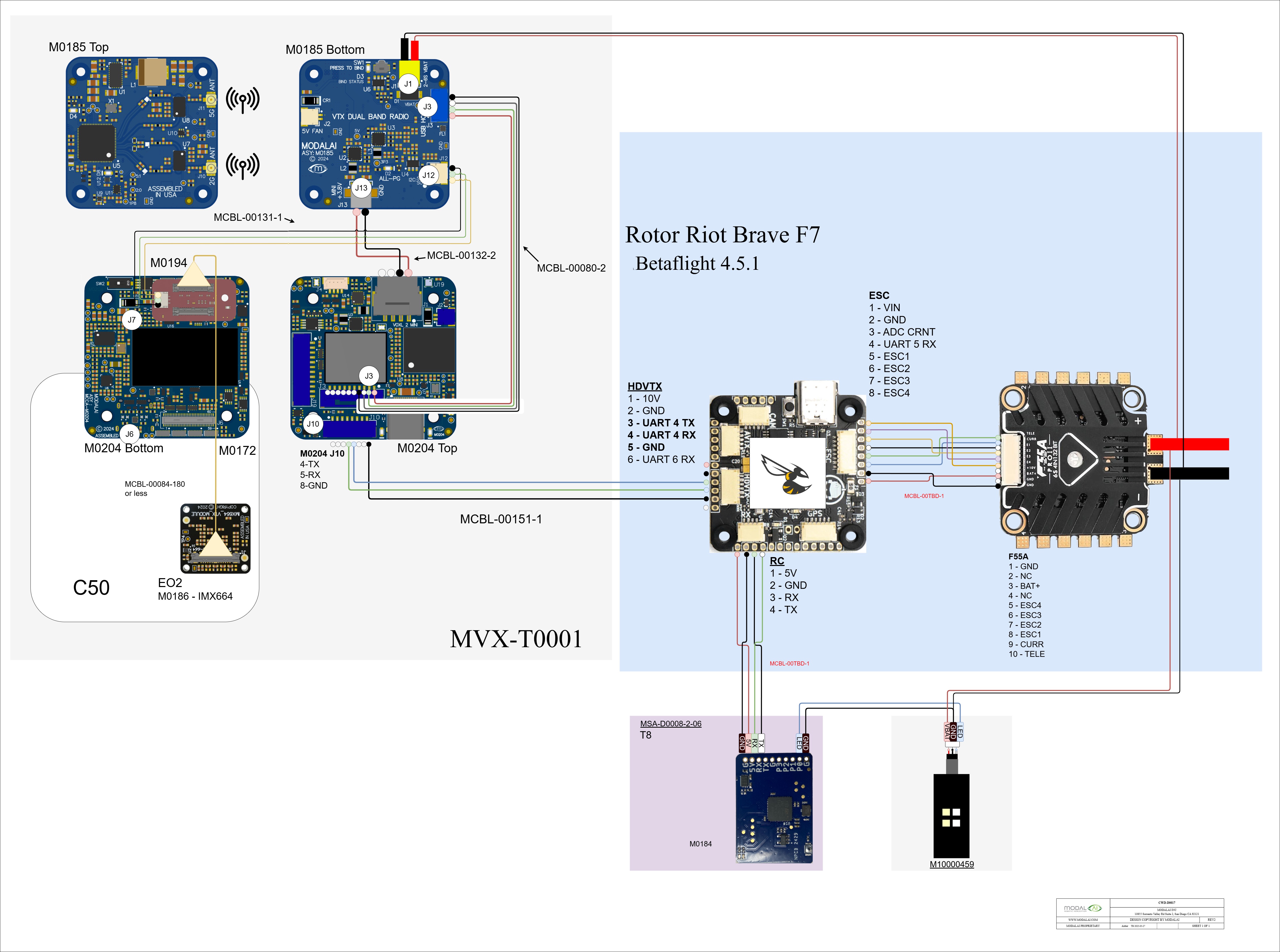

Wiring Diagram

MRB-D0017-8-C50-M26-T8

  • MRB-D00017-8 - Shikra Family, VOXL2 Mini Compute with Brave F7 flight controller
  • C50 - QTY. 1 ModalAI M0186 IMX664 (Front)
  • M26 - ModalAI MVX (M0185-1 VTX)
  • T8 - MoadlAI ELRS 915MHz
