M0153 MIPI Boson Image Sensor Adapter

M0153 vs M0201

ℹ️ M0201 and M0153 are electrically identical. M0201 is a mechanical change for a slightly better mounting fit to the rear of the Boson+

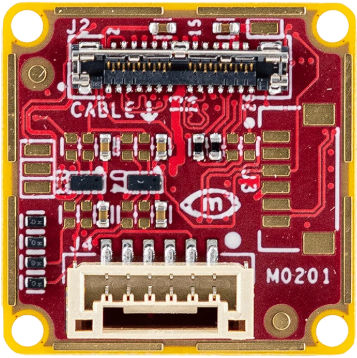

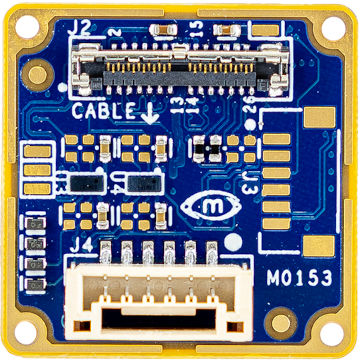

M0153 M0201

Boson+ USB Setup Requirement

The Boson+ must first be configured over USB using the FLIR Boson+ Application v4.2.

NOTE: we have not had success with newer versions of the FLIR Boson+ application, e.g. 4.6 didn’t work

You need to purchase the Boson+ and USB backback seperately.

VOXL SDK Requirements

VOXL SDK 1.4.3+ is required. Only 30 FPS is supported (not 60FPS) in this release.

Hardware Requirements

Where to buy : https://www.modalai.com/products/m0201

VOXL2 Connection Options (Boson as the only camera per VOXL2 camera port)

  • use either M0162 or M0181 camera adapter, in both cases, use VOXL2 Kernel variant 0
  • [Boson] + [M0201] + [coax cable] + [M0162] -> [VOXL2 J6/7/8] MDK-M0153-1-055 (showing Boson connected to VOXL2 J7 using M0153 + M0162) MDK-M0153-1-055-J7-Boson
  • [Boson] + [M0201] + [coax cable] + [M0181 J1] -> [VOXL2 J6/7/8]

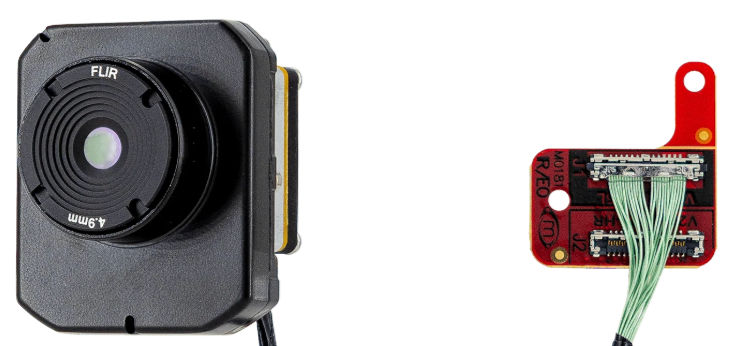

❗If M0181 is used, Boson MUST be connected to M0181 J1 (not J2), as shown below Boson M0181 J1

  • Mounting hole in the tab of M0181 will line up with VOXL2 mounting hole only if VOXL2 J8 camera port is used. Note that two coax cables are shown connected to M0181, disregard the second cable for this example, plugged into M0181 J2) Boson M0181 J8

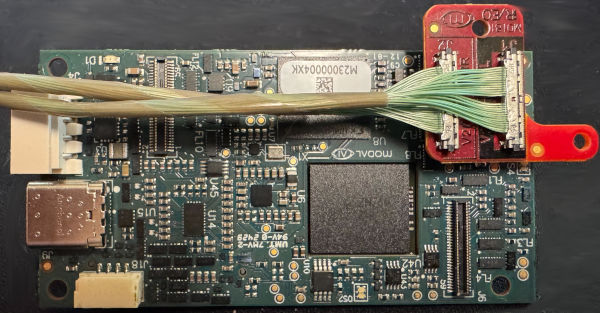

  • If connecting second camera to M0181 (J2), only VOXL2 J7 is currently compatible (kernel variant 0). Please note that the mounting holes of M0181 will not line up with mounting holes of VOXL2 in this case. Boson M0181 J7

VOXL2 Mini Connection Options

  • [Boson] + [M0201] + [coax cable] + [M0162] -> [VOXL2 Mini J6/7]

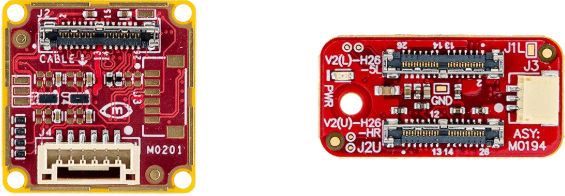

  • [Boson] + [M0201] + [coax cable] + [M0194 J1L] -> [VOXL2 Mini J6/7] Boson M0201 M0194
  • [Boson] + [M0201] + [coax cable] + [M0181 J1] -> [VOXL2 Mini J6/7]
  • if M0181 is plugged into VOXL2 Mini J6, mounting hole in M0181 does not line up with mounting hole of VOXL2 Mini

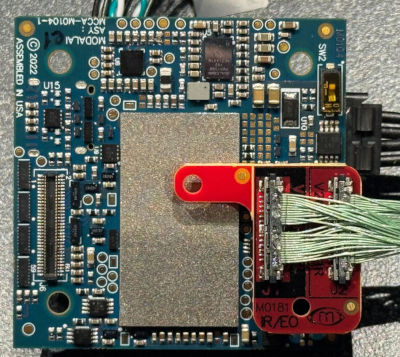

  • If M0181 is plugged into VOXL2 Mini J7, tab can be removed from M0181 and the mounting holes of M0181 and VOXL2 Mini will line up

Boson M0181 VOXL2 Mini J7

Hardware Connection

  • Boson sensor supported on VOXL2 J8 using camera configs C37 or C47
  • Boson sensor supported on VOXL2 Mini J7 using camera configs C51 or C52

Boson Software Setup

This procedure is done independent of VOXL2 and uses MDK-M0201-2. Original Boson USB adapter can also be used.

MDK-M0153-1-055

Connect

  • Setup a Windows OS with FLIR Boson+ Application v4.2 (see https://www.flir.com/oem/boson-family/)
  • Connect Boson+ using MDK-M0201-2 USB backpack to Windows PC using a USB connection
  • Select the Boson sensor from the “Port” drop down list (bottom right of GUI)
    • when selected, the “Boson Link” should show “Connected”

Reset to Factory

  • Click on the “System” option in the left side navigation bar
    • Click on the “Configuration Controls” option
      • Click the “Restore Factory Defaults” button

Confgure MIPI

  • Click on the “Image Apperance” option in the left side navigation bar
    • Click on “USB Video Controls”
      • Ensure “USB Video Enabled” is DISABLED
    • Click on “Analog/CMOS Video Controls”
      • Set “Video Source” to “Post-AGC”
      • Disable telemetry (both “CMOS Enabled” and “MIPI Embedded”)
      • Set “Video” to “MIPI”

Confgure 30 FPS

  • Click on the “System” option in the left side navigation bar
    • Click on the “Sync & Frame Rate” option
      • Set “Frame Skip” to 1, to enable 30 FPS

Save Power On Defaults

  • Click on the “System” option in the left side navigation bar
    • Click on the “Configuration Controls” option
      • Click the “Save Power-On Defaults” button
  • Power off
  • Remove MDK-M0201-2 USB backpack from BOSON.

VOXL2 Hardware Setup

The MDK-M0153-1-055, MIPI Boson+ Add On Development Kit comes with the following.

  • MCCA-M0153-1 - MIPI Coax to Boson W I2C GIMBAL PASS-THROUGH - Connects to Boson+
  • MCCA-M0162-1 - VOXL2 To BOSON COAX ADAPTER (Code: V2(L)-H26-5L) - Connects to VOXL2/VOXL2 Mini J7
  • MCBL-00084-055 - High-Speed Camera Coax Cable, 26-pin, 55mm - Connects between M0153/M0162

MDK-M0153-1-055

MDK-M0153-1-055-J7

MDK-M0153-1-055-J7-Boson

VOXL2 Software Setup

VOXL2 J8 support via:

voxl-configure-cameras 36
voxl-configure-cameras 37

VOXL2 Mini J7 support via:

voxl-configure-cameras 51
voxl-configure-cameras 52

3D Model

M0201 STEP File
